Measured 2026-08-01 · D.L.SKU CAL-GLS-PH1

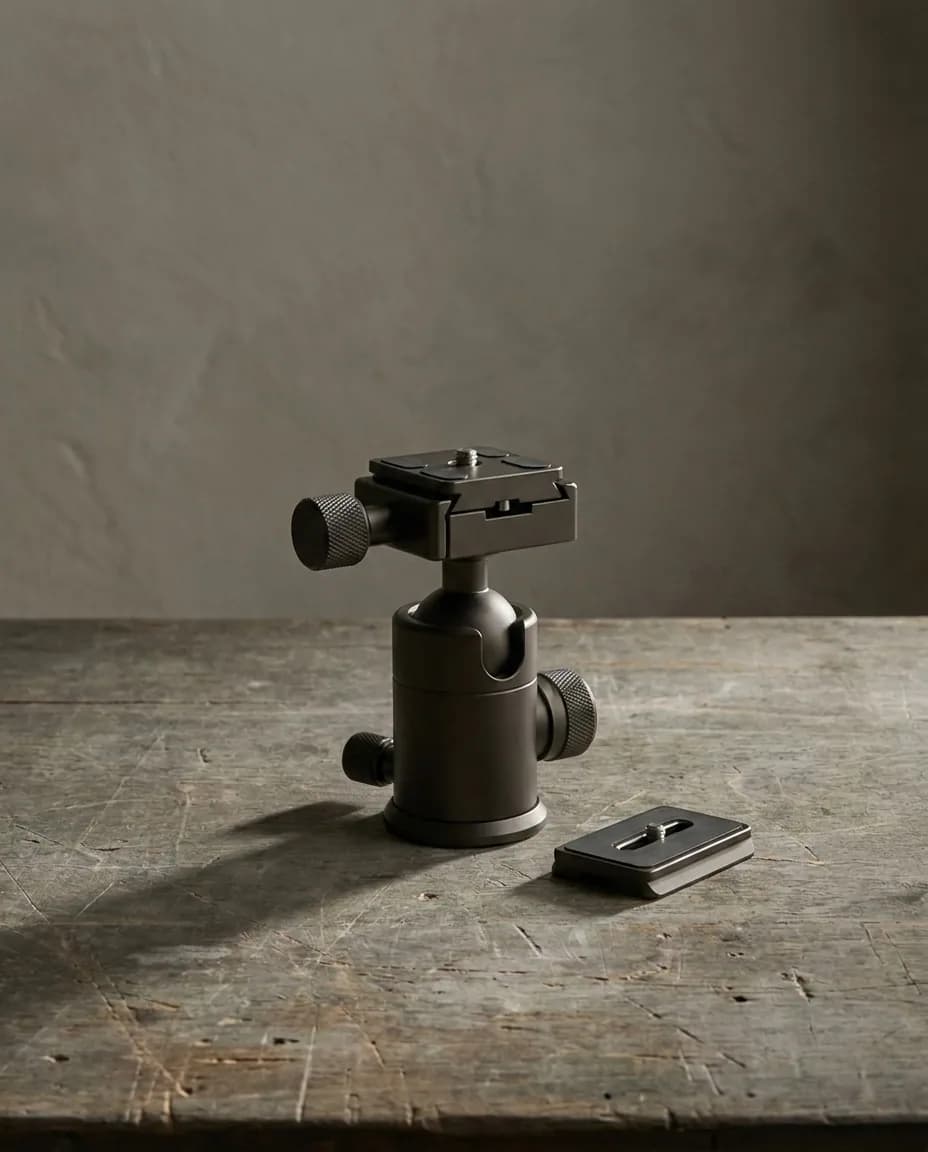

Pan Head

Name: Pan Head — Calibrated Supply Co.
Brand: Calibrated
SKU: CAL-GLS-PH1
Price: 179.00 USD
Availability: InStock
Rating: 4.7 (154 reviews)

Two-axis head with an Arca clamp

4.7 / 5154 reviews

Smooth pan at −20°C, an Arca clamp that fits what you already own, and drag you can actually set rather than a knob that is on or off.

$179.00

CAL-GLS-PH1 · USD

In stock

Qualifies for free standard shipping · 3–5 business days
60-day returns. One-time purchase — no subscription and no recurring charge.
Weight 398 g / 14.0 oz, measured 2026-08-01 on A&D EK-6100i, ±1 g. The same numbers are printed on the Field Card in the box.

Your card statement will show CALIBRATED SUPPLY for this order, not “Calibrated”. Questions? support@calibratedsupply.com · +1 (714) 269-7133.

Measured

How we measure

Weight

398 g / 14.0 oz

With the plate fitted.

Load rating

9 kg / 20 lb

Static, matched to the tripod so neither is the weak link.

Pan drag

Adjustable, 0.4–2.1 Nm

Measured at the clamp with a torque gauge.

Clamp

Arca-Swiss, 38 mm

Fits any standard Arca plate, including the one on your spotter.

Taken 2026-08-01 on A&D EK-6100i, ±1 g by D.L.. The same values are printed on the Field Card in your box, so the page and the carton can never disagree.

What it is made of

CNC aluminium body398 g
Machined, not cast. Cast heads develop play.
PTFE bearing surfaces
Consistent drag from −20°C upward — grease stiffens, PTFE does not.

The full description

A head is where cheap tripod systems go wrong. Grease-damped heads go stiff in the cold exactly when you need to move slowly, and cast bodies develop play that shows up as a shimmer at 15×.

This one is machined aluminium on PTFE bearing surfaces, with pan drag adjustable between 0.4 and 2.1 Nm — enough range to hold a spotter still and still move a binocular smoothly. The clamp is a standard 38 mm Arca, so plates you already own fit it.

Bought for

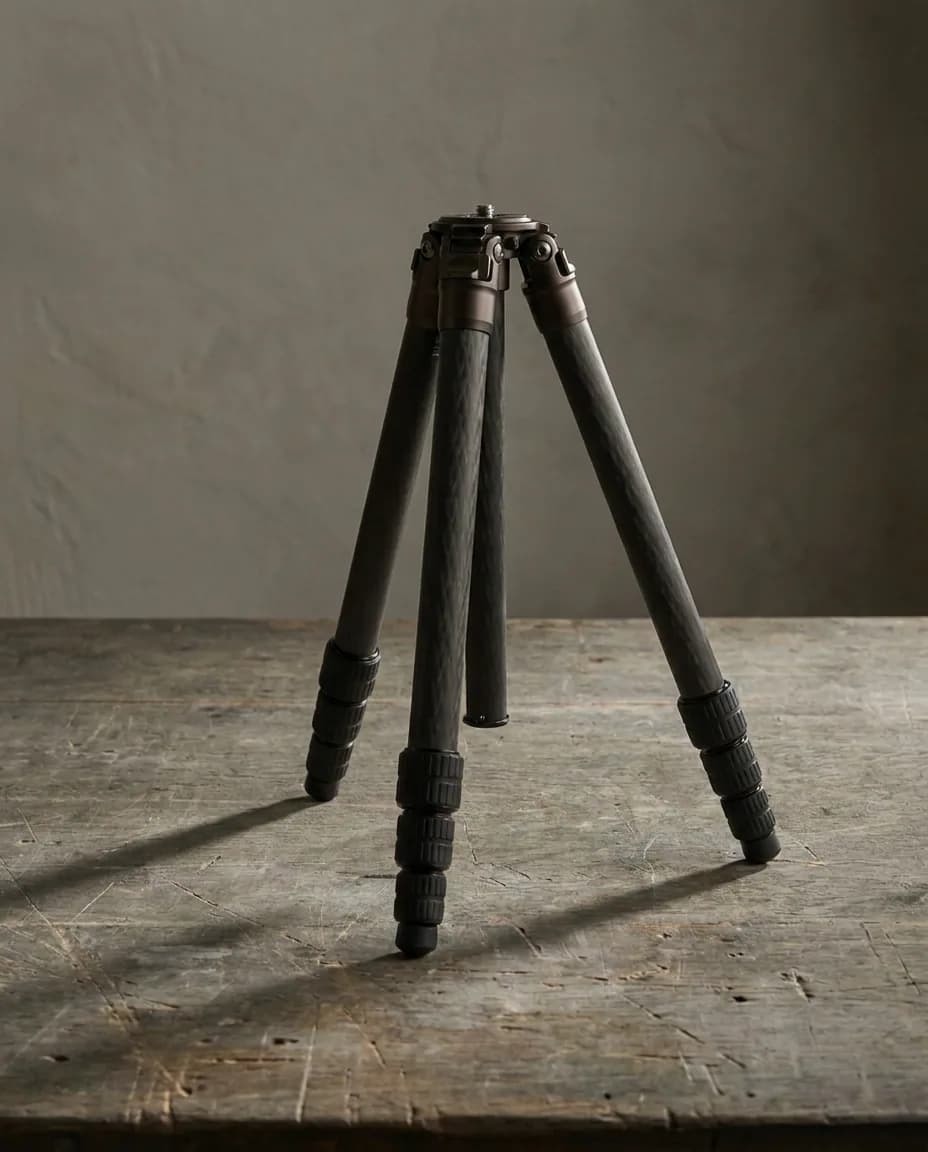

Binoculars and spotting scopes on the Carbon Glassing Tripod.

Not for

Video work. There is no fluid cartridge here and the pan will not be cinematic.

Field notes

01Set the drag so the head moves when you push it and stops when you stop. Locked is not the goal.
02Tighten the clamp with a coin or a glove, not a fingernail. It is meant to be firm.
03Level the head, not the legs. That is what the panning base is for.

In the box

Pan Head
Arca plate, 1/4-20
Hex key
Field Card

Construction, care and warranty

Construction: CNC-machined 6061 aluminium body and clamp; PTFE bearing surfaces; adjustable pan and tilt drag; 38 mm Arca-Swiss clamp with a safety stop; 3/8-16 base thread with a 1/4-20 adapter.
Care: Keep grit out of the clamp jaws. Do not oil the bearing surfaces — oil is what ruins a PTFE head.
Warranty: Lifetime against mechanical defect.
Bought for: Western, Late season
SKU: CAL-GLS-PH1
Price: $179.00 USD
